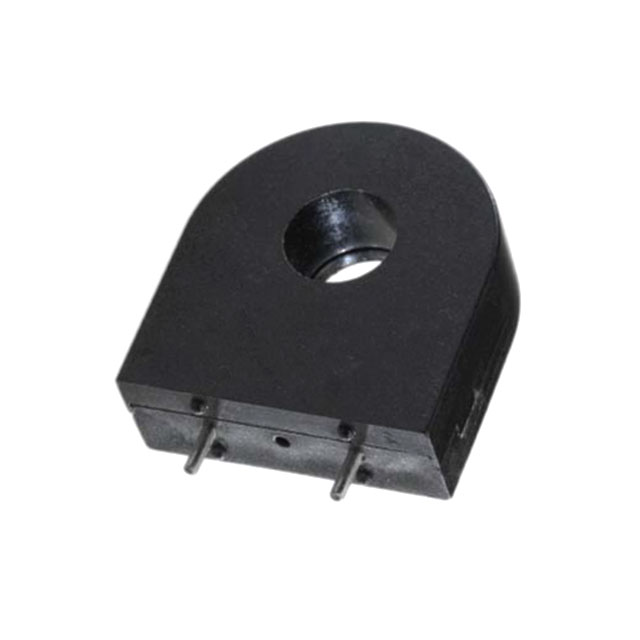

| Part number: | CST306-3A-B |
| Description: | CURR SENSE XFMR 25A T/H |
| Manufacturer | Triad Magnetics |
| Encapsulation | Bulk |
| Quantity | 720 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 0.690" L x 0.385" W (17.53mm x 9.78mm) |
| Mounting Type | Through Hole |
| Type | Non-Invasive (Solid Core) |
| Termination Style | PC Pin |
| DC Resistance (DCR) | 3.75Ohm Max |
| ET (Volt-Time) | 2000VµS |
| Frequency Range | 20kHz ~ 200kHz |
| Height - Seated (Max) | 0.915" (23.24mm) |
| Current Ratio | 200:1 |
| Inductance | 55 mH |
| Current Rating (Amps) | 25 A |
|
