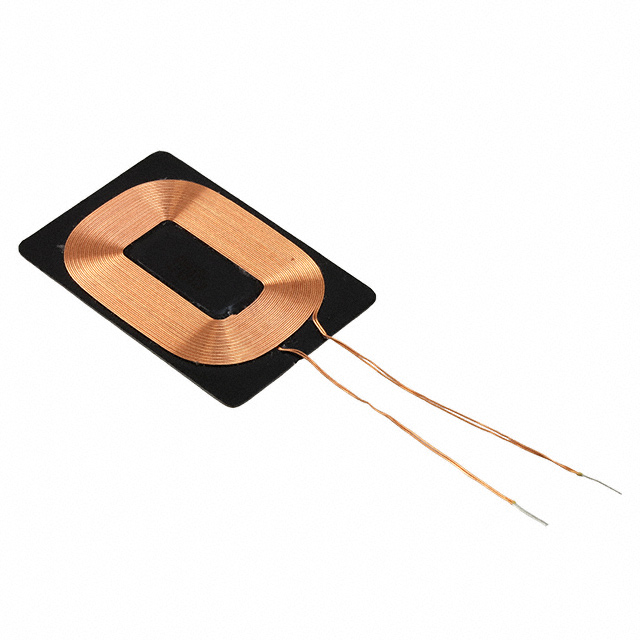

| Part number: | AWCCA-48R32H11-C01-B |
| Description: | RX 1 COIL 1 LAYER 10.5UH 2.6A |
| Manufacturer | Abracon |
| Encapsulation | Box |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Abracon" |
| Tolerance | ±10% |
| Inductance | 10.5µH |
| Size / Dimension | 1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm) |
| Current Rating (Amps) | 2.6A |
| Function | Receiver |
| Type | 1 Coil, 1 Layer |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) | 190mOhm |
| Q @ Freq | 28 @ 100kHz |
| Frequency - Self Resonant | 11MHz |
| Current - Saturation (Isat) | 15A |
|
