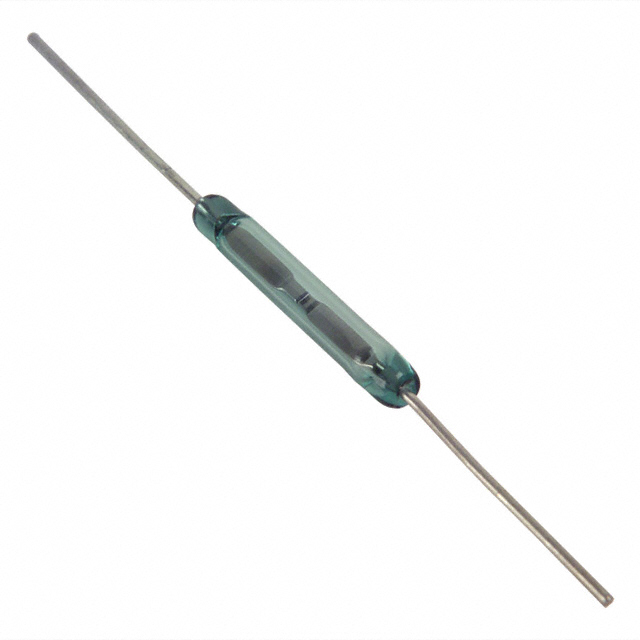

| Part number: | MARR-5-12-38 |
| Description: | SWITCH REED SPST-NO 350MA 265V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Box |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -75°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 2.235" (56.77mm) |
| Power - Rated | 10W |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching DC | 1000 V |
| Operate Time | 0.75 ms |
| Release Time | 0.3 ms |
| Size - Body | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) |
| Operate Range | 12 ~ 38AT |
| Current - Carry | 1.3A (DC) |
| Voltage - Switching AC | 265 V |
| Capacitance | 0.2 pF |
|
