| Part number: | MDSM-10B-20-25 |

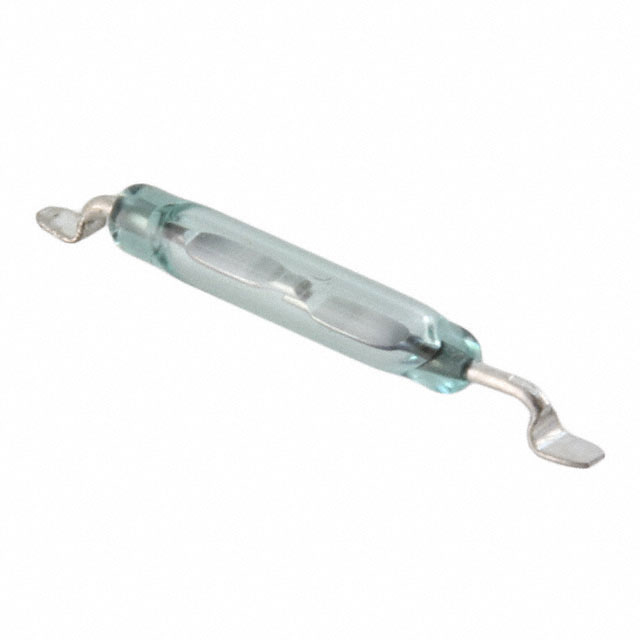

| Description: | SWITCH REED SPST-NO 350MA 140V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Box |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Length - Overall | 0.615" (15.62mm) |
| Power - Rated | 10W |
| Height Above Board | 0.079" (2.00mm) |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.5 ms |
| Release Time | 0.1 ms |
| Size - Body | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) |
| Operate Range | 20 ~ 25AT |
| Current - Carry | 1A (DC) |
| Voltage - Switching AC | 140 V |
| Capacitance | 0.2 pF |
|
