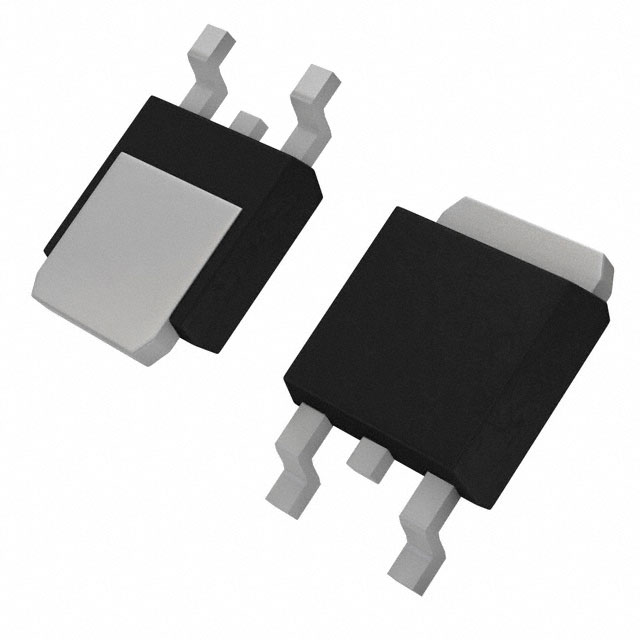

| Part number: | CHD8-06 TR13 PBFREE |
| Description: | DIODE GEN PURP 600V 8A DPAK |
| Manufacturer | Central Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Central Semiconductor" |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 26pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | DPAK |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 8 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
|
