| Part number: | Q6006LTH |
| Description: | TRIAC INT TRIGGER 600V 6A TO220 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

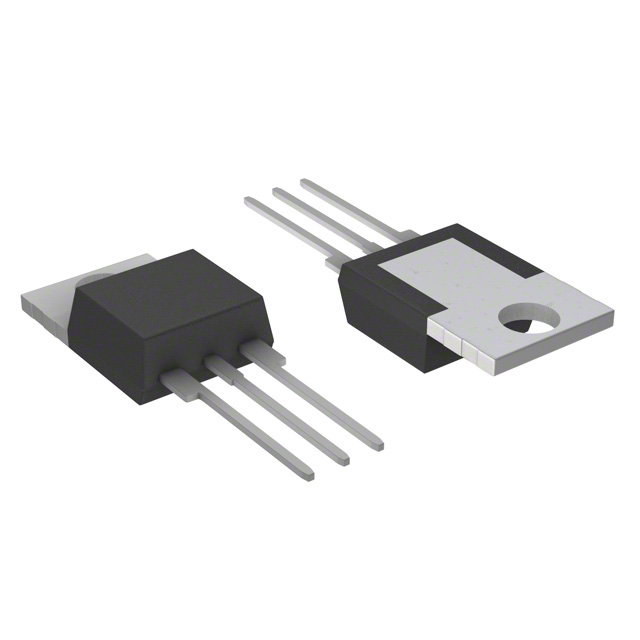

| Package / Case | TO-220-3 Isolated Tab |
| Mounting Type | Through Hole |
| Triac Type | Internally Triggered |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 65A, 80A |
| Supplier Device Package | TO-220 Isolated Tab |
| Current - On State (It (RMS)) (Max) | 6 A |
| Voltage - Off State | 600 V |
|
