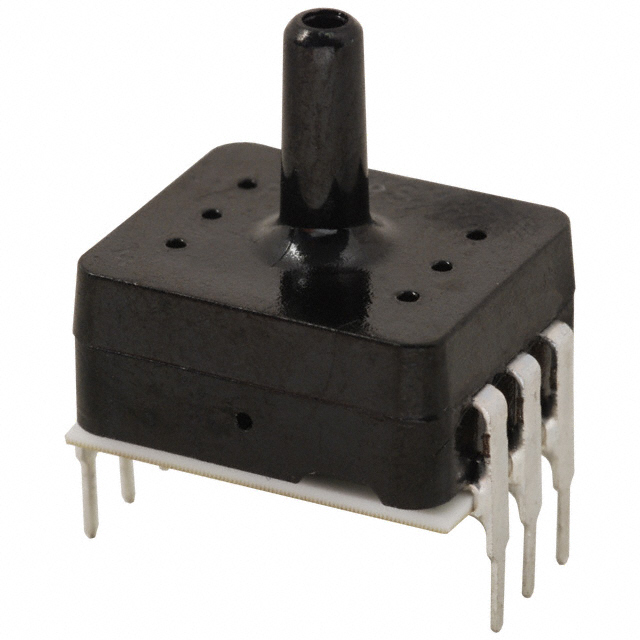

| Part number: | SDX05G2-A |
| Description: | SENSOR 5PSIG 0.11" .06V |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Encapsulation | Bulk |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Honeywell Sensing and Productivity Solutions" |
| Features | Temperature Compensated |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 60 mV (12V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 20V |
| Port Size | Male - 0.11" (2.67mm) Tube |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 20PSI (137.9kPa) |
|
