| Part number: | 3.14.001.006/0000 |

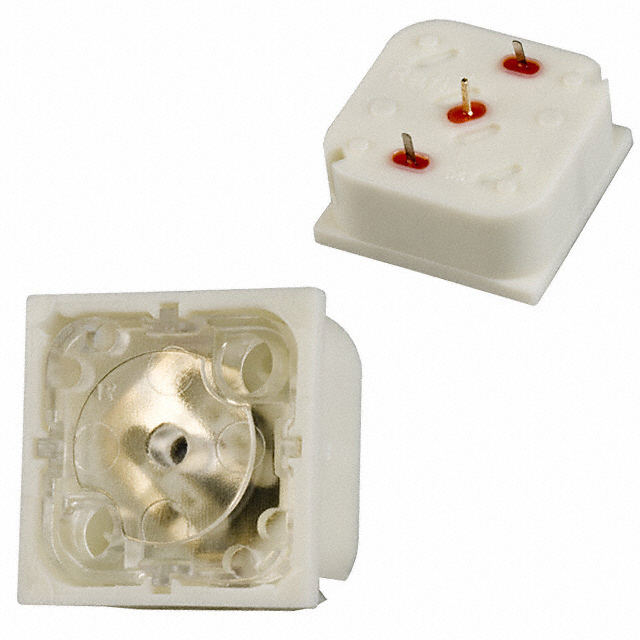

| Description: | SWITCH TACTILE SPST-NO 0.25A 50V |
| Manufacturer | RAFI |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RAFI" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.25A @ 50VAC/DC |
| Actuator Type | Square Button |
| Operating Force | 204 ~ 306gf |
| Outline | 19.05mm x 19.05mm |
| Actuator Height off PCB, Vertical | 9.70mm |
| Actuator Orientation | Top Actuated |
|
