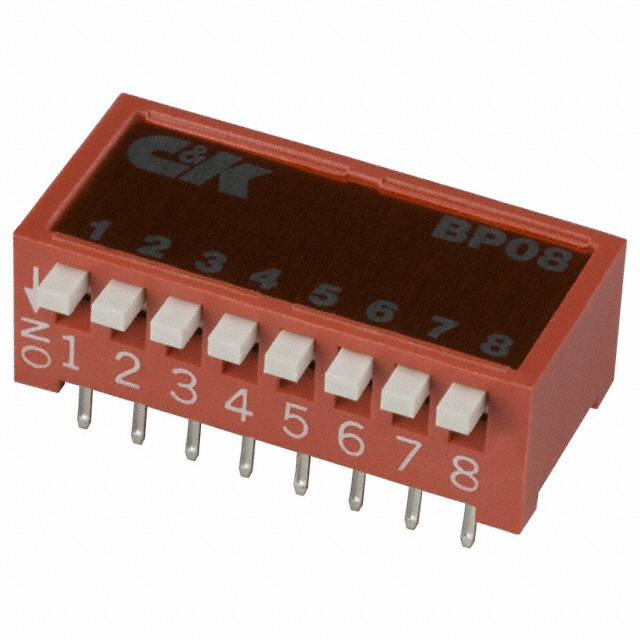

| Part number: | BP08YE |
| Description: | SWITCH SLIDE DIP SPST 0.1A 5V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Bag |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Features | Epoxy Sealed Terminals |
| Contact Finish | Tin |
| Voltage Rating | 5VDC |
| Current Rating (Amps) | 100mA |
| Mounting Type | Through Hole, Right Angle |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -20°C ~ 60°C |
| Termination Style | PC Pin |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.315" (8.00mm) |
| Actuator Level | Raised |
| Washable | No |
| Contact Material | Phosphor Bronze |
| Number of Positions | 8 |
|
