| Part number: | PTS125SK85 |

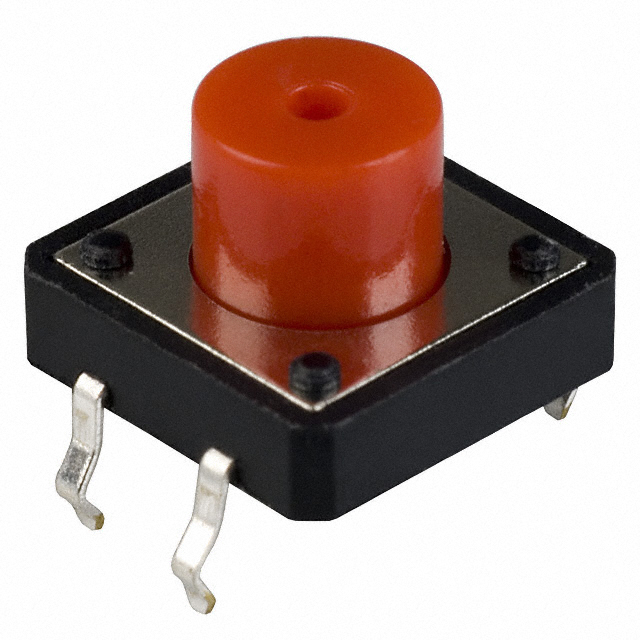

| Description: | SWITCH TACTILE SPST-NO 0.05A 12V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 60°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Operating Force | 260gf |
| Outline | 12.00mm x 12.00mm |
| Actuator Height off PCB, Vertical | 8.50mm |
| Actuator Orientation | Top Actuated |
|
