| Part number: | SN74AHC00NSR |
| Description: | IC GATE NAND 4CH 2-INP 14SO |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

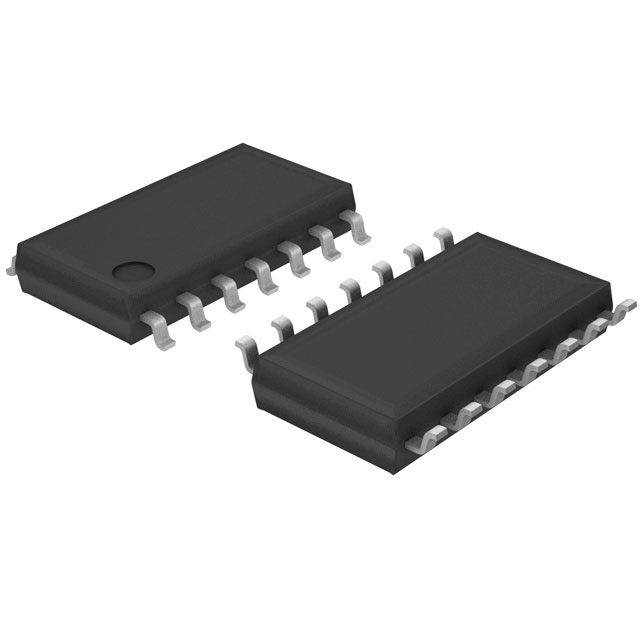

| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-SO |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 2 µA |
|
