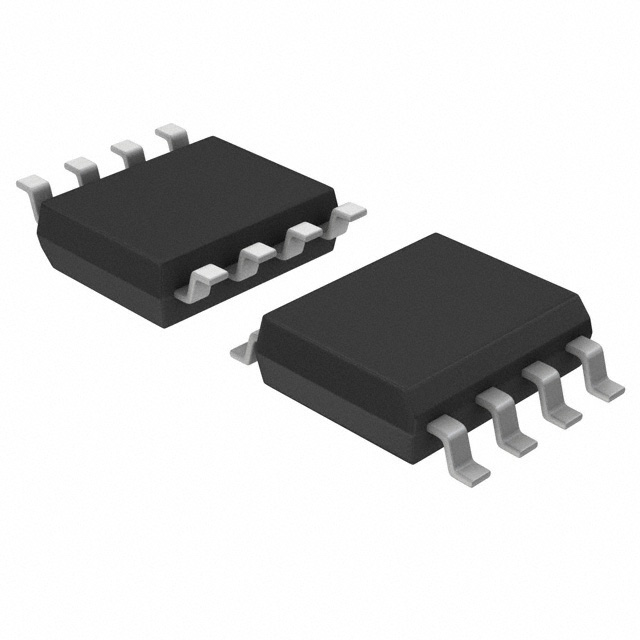

| Part number: | SN74LVC2G32DCTR |
| Description: | IC GATE OR 2CH 2-INP SM8 |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | OR Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 2 |
| Supplier Device Package | SM8 |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 3.2ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 10 µA |
|
