| Part number: | SC32S-7PF20PPM |

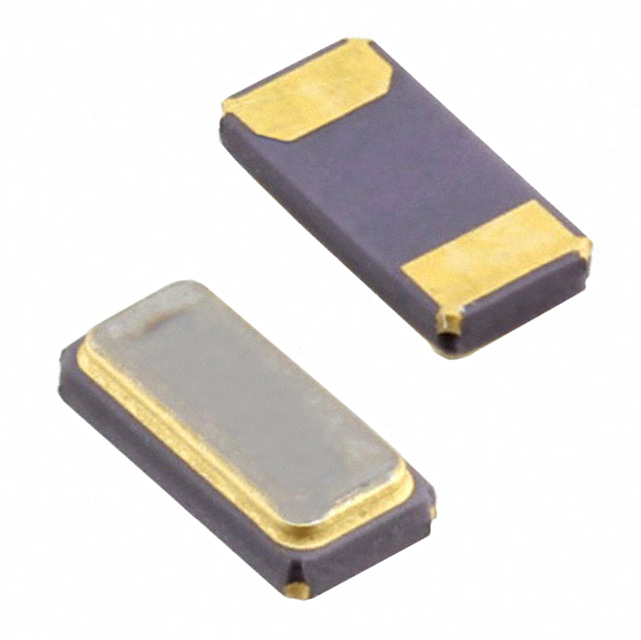

| Description: | CRYSTAL 32.7680KHZ 7PF SMD |
| Manufacturer | Seiko Instruments, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Seiko Instruments, Inc." |
| Package / Case | 2-SMD, No Lead |
| Load Capacitance | 7pF |
| Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Mounting Type | Surface Mount |
| Type | kHz Crystal (Tuning Fork) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Tolerance | ±20ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.033" (0.85mm) |
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 32.768 kHz |
|
