| Part number: | 0637320000 |

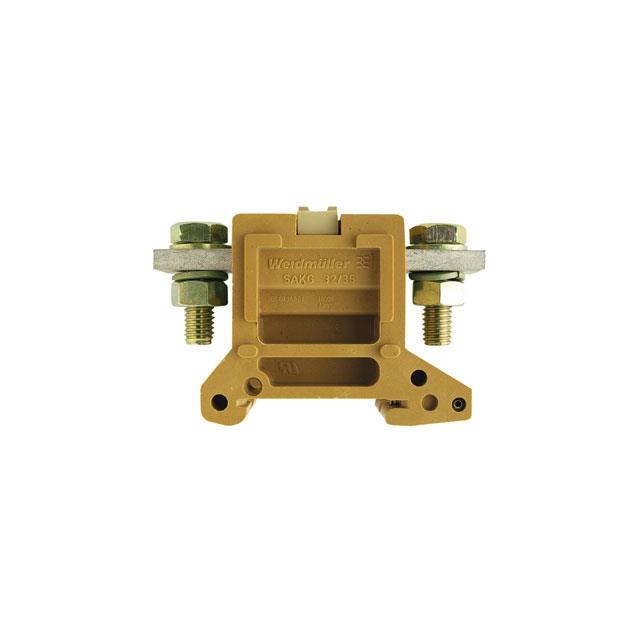

| Description: | TERM BLK BUS BAR 2POS 32.0MM BG |
| Manufacturer | Weidmuller |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Weidmuller" |
| Mounting Type | DIN Rail |
| Length | 3.150" (80.00mm) |
| Type | Bus Bar - Terminals |
| Operating Temperature | -60°C ~ 130°C |
| Termination Style | Bolt and Nut |
| Material - Insulation | Gemin (Thermosetting Plastic) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 32.0mm |
| Wire Gauge or Range - AWG | 3/0-6 AWG |
| Wire Gauge or Range - mm² | 10-70mm² |
| Height (Max) | 2.087" (53.00mm) |
| Housing Color | Beige |
| Current - UL | 200 A |
| Current - IEC | 150 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 600 V |
| Number of Positions | 2 |
|
