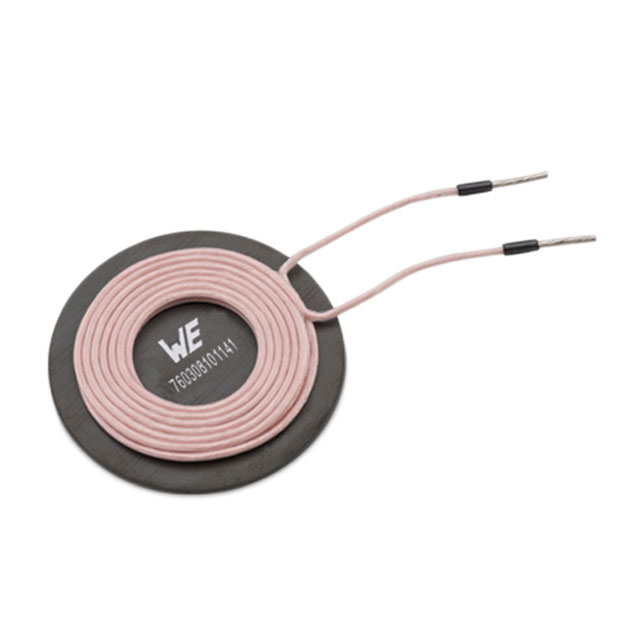

| Part number: | 760308100141 |
| Description: | TX 1 COIL 2 LAYER 10UH 9A |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Box |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±10% |
| Inductance | 10µH |
| Size / Dimension | 1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm) |
| Current Rating (Amps) | 9A |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer |
| Operating Temperature | -20°C ~ 105°C |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | 180 @ 125kHz |
| Frequency - Self Resonant | 11MHz |
| Current - Saturation (Isat) | 16A |
|
