| Part number: | 1720750000 |

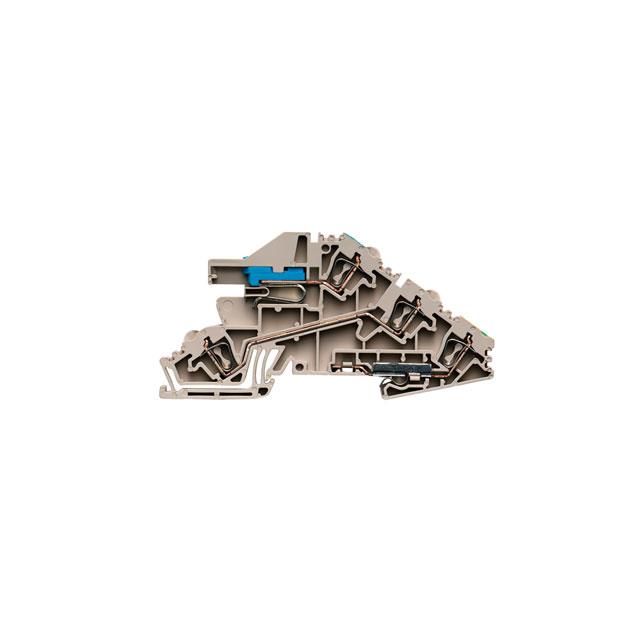

| Description: | TERM BLK BUS BAR 5POS 5.1MM BG |
| Manufacturer | Weidmuller |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Weidmuller" |
| Mounting Type | DIN Rail |
| Length | 3.740" (95.00mm) |
| Type | Bus Bar - Side |
| Operating Temperature | -50°C ~ 120°C |
| Termination Style | Special Clamp, Push-In Spring |
| Material - Insulation | Thermoplastic, Wemid |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 3; 1 Grounded |
| Terminal - Width | 5.1mm |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
| Height (Max) | 1.909" (48.50mm) |
| Housing Color | Beige |
| Stripping Length | 8mm |
| Current - UL | 15 A |
| Current - IEC | 24 A |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
| Number of Positions | 5 |
|
