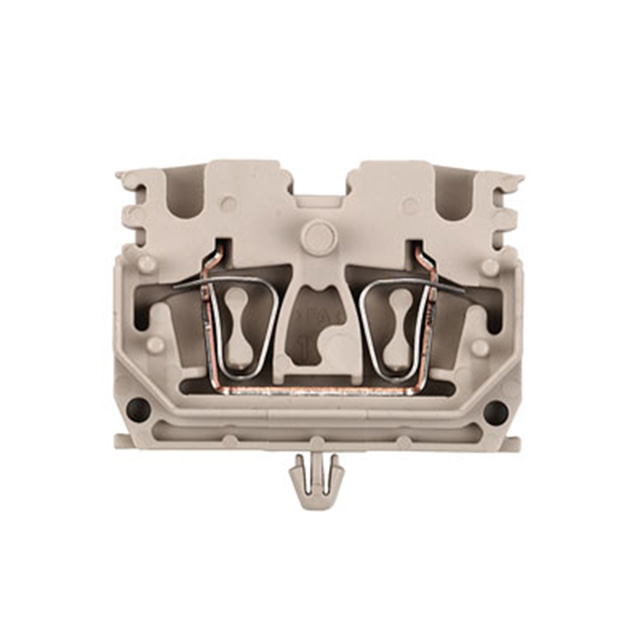

| Part number: | 1712820000 |
| Description: | TERM BLK MIDDLE 2POS 5.1MM BEIGE |
| Manufacturer | Weidmuller |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Weidmuller" |
| Features | Engagement Pin |
| Mounting Type | Direct Mount |
| Length | 1.319" (33.50mm) |
| Type | Middle |
| Operating Temperature | -50°C ~ 120°C |
| Termination Style | Spring Cage |
| Material - Insulation | Thermoplastic, Wemid |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 5.1mm |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.5-4mm² |
| Height (Max) | 1.142" (29.00mm) |
| Housing Color | Beige |
| Stripping Length | 10mm |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Number of Positions | 2 |
|
