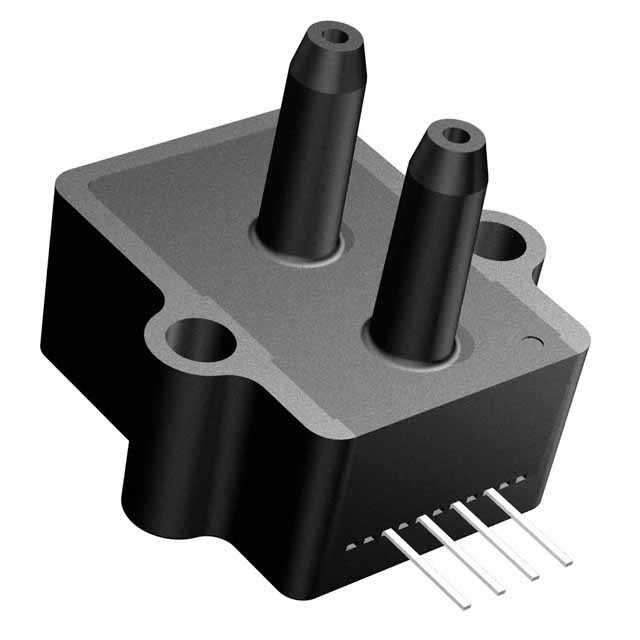

| Part number: | 10 INCH-G-4V-MIL |
| Description: | SENSOR 0.36PSIG 0.19" 4.25V |
| Manufacturer | Amphenol All Sensors |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol All Sensors" |
| Features | Amplified Output, Temperature Compensated |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.25 V ~ 4.25 V |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.19" (4.83mm) Tube |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 7.23PSI (49.83kPa) |
|
