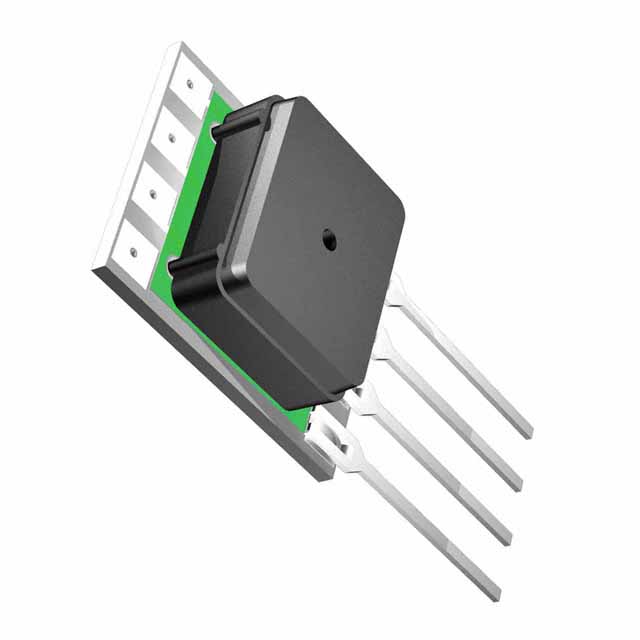

| Part number: | 15 PSI-A-CGRADE-MINI |
| Description: | SENSOR 15PSIA .09V |
| Manufacturer | Amphenol All Sensors |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol All Sensors" |
| Features | Temperature Compensated |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 16V |
| Applications | Board Mount |
| Port Style | No Port |
| Maximum Pressure | ±60PSI (±413.69kPa) |
|
