| Part number: | 0.3 PSI-G-HGRADE-MINI |

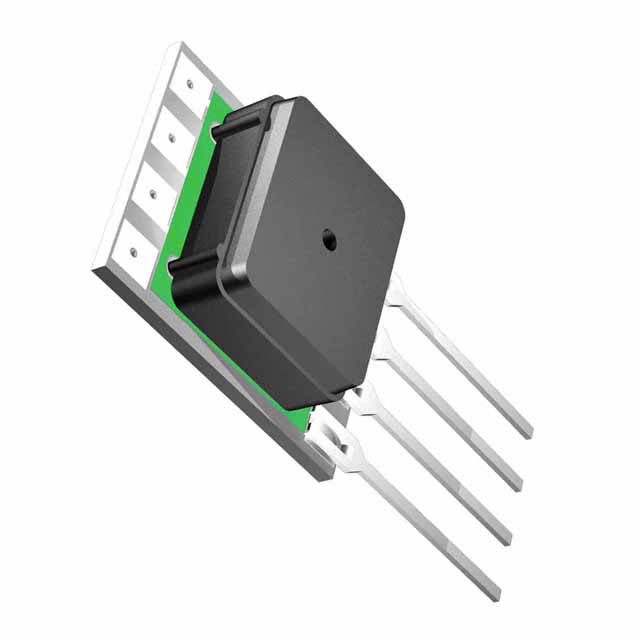

| Description: | SENSOR 0.3PSIG .02V |
| Manufacturer | Amphenol All Sensors |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol All Sensors" |
| Features | Temperature Compensated |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 20 mV (12V) |
| Operating Pressure | 0.3PSI (2.07kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 16V |
| Applications | Board Mount |
| Port Style | No Port |
| Maximum Pressure | 3PSI (20.68kPa) |
|
