| Part number: | 760308102207 |

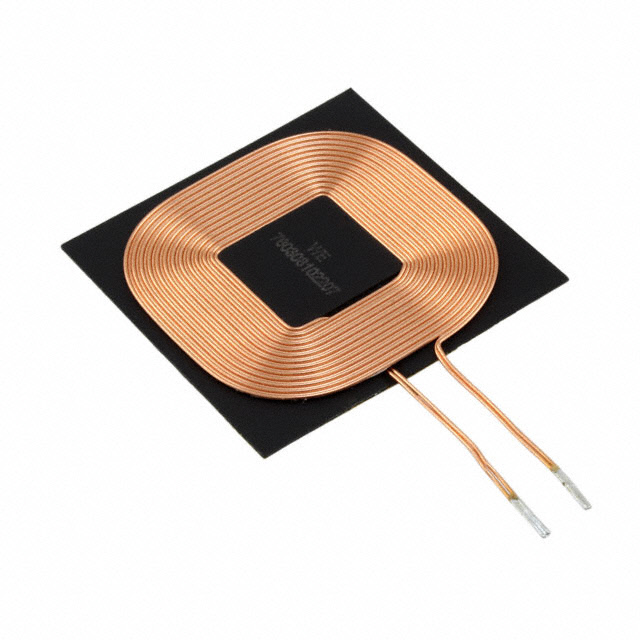

| Description: | RX 1 COIL 1 LYR BIFILAR 8UH 5A |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Box |
| Quantity | 56 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±10% |
| Inductance | 8µH |
| Size / Dimension | 1.57" L x 1.57" W x 0.13" H (40.0mm x 40.0mm x 3.3mm) |
| Current Rating (Amps) | 5A |
| Function | Receiver |
| Type | 1 Coil, 1 Layer, Bifilar |
| Operating Temperature | -20°C ~ 105°C |
| DC Resistance (DCR) | 60mOhm |
| Q @ Freq | 30 @ 125kHz |
| Frequency - Self Resonant | 16MHz |
| Current - Saturation (Isat) | 10A |
|
