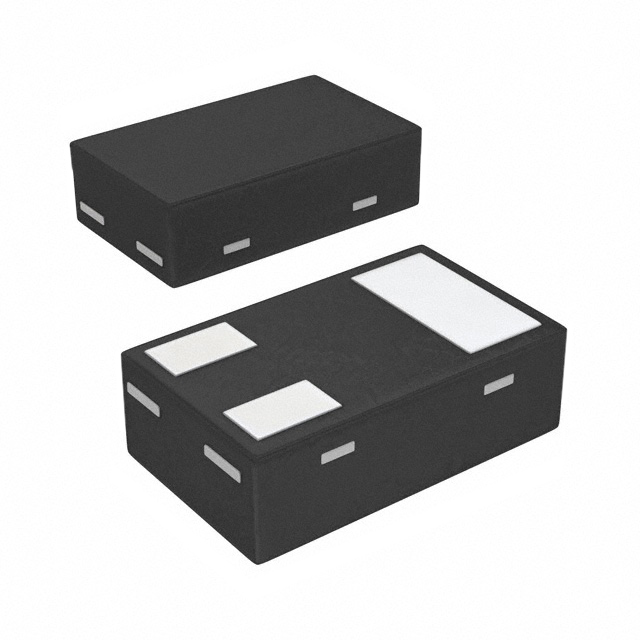

| Part number: | CEDM8001VL TR PBFREE |
| Description: | MOSFET P-CH 20V 100MA SOT883VL |
| Manufacturer | Central Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 8000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Central Semiconductor" |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Rds On (Max) @ Id, Vgs | 8Ohm @ 10mA, 4V |
| Power Dissipation (Max) | 100mW (Ta) |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | SOT-883VL |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Vgs (Max) | 10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.66 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 45 pF @ 3 V |
|
