| Part number: | SGP30N60XKSA1 |
| Description: | IGBT 600V 41A 250W TO263 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

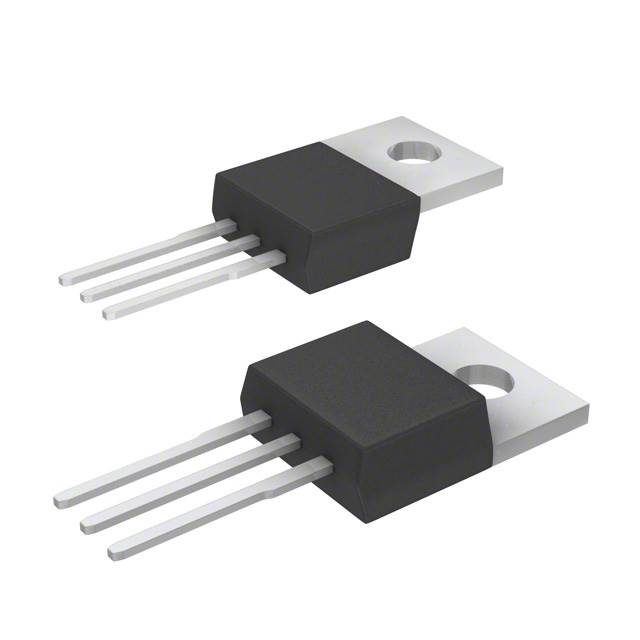

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 30A |
| Supplier Device Package | TO-220AB |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 44ns/291ns |
| Switching Energy | 1.29mJ |
| Test Condition | 400V, 30A, 11Ohm, 15V |
| Gate Charge | 140 nC |
| Current - Collector (Ic) (Max) | 41 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 112 A |
| Power - Max | 250 W |
|
