| Part number: | IXER35N120D1 |

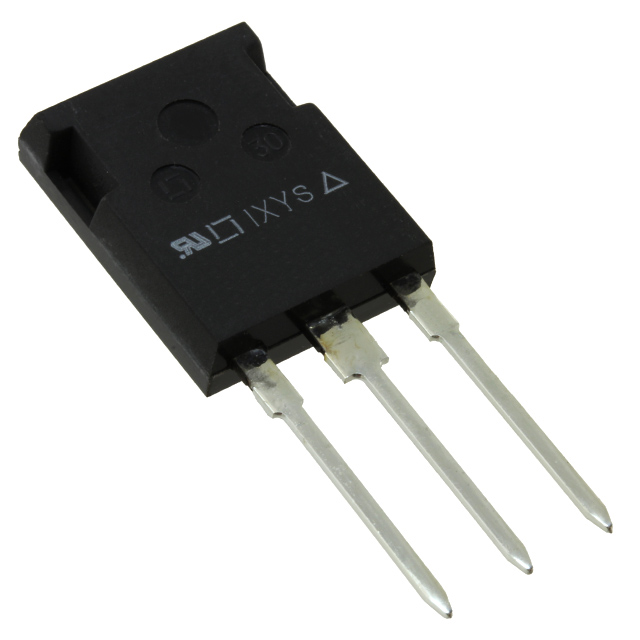

| Description: | IGBT 1200V 50A 200W TO247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Bulk |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 80 ns |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 35A |
| Supplier Device Package | ISOPLUS247™ |
| IGBT Type | NPT |
| Switching Energy | 5.4mJ (on), 2.6mJ (off) |
| Test Condition | 600V, 35A, 39Ohm, 15V |
| Gate Charge | 150 nC |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 200 W |
|
