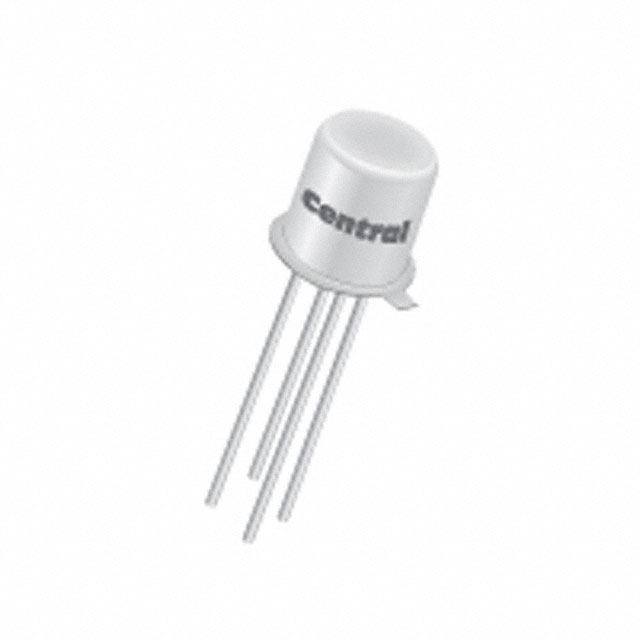

| Part number: | BFY90 PBFREE |
| Description: | RF TRANS NPN 15V 1.4GHZ TO72 |
| Manufacturer | Central Semiconductor |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Central Semiconductor" |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Gain | 23dB |
| Power - Max | 200mW |
| Current - Collector (Ic) (Max) | 25mA |
| Voltage - Collector Emitter Breakdown (Max) | 15V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 25mA, 1V |
| Frequency - Transition | 1.4GHz |
| Noise Figure (dB Typ @ f) | 5.5dB @ 800MHz |
| Supplier Device Package | TO-72 |
|
