| Part number: | WM-63GNT335 |

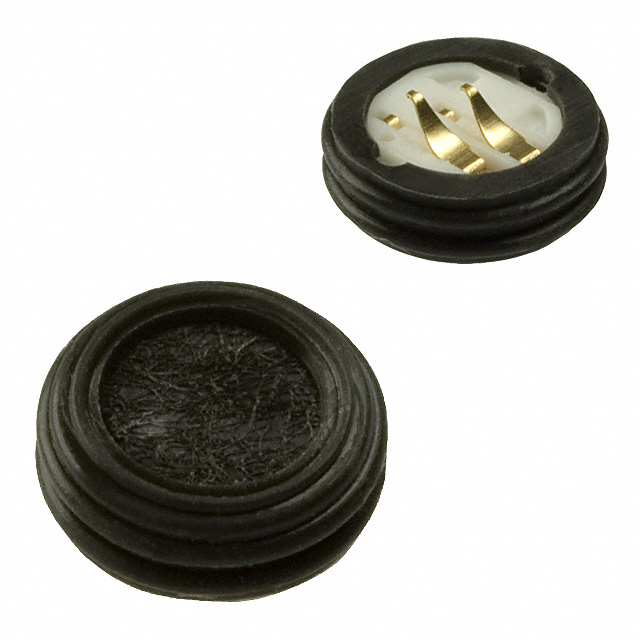

| Description: | MIC COND ANLG OMNI -44DB 0.295"D |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Output Type | Analog |
| Size / Dimension | 0.295" Dia (7.50mm) |
| Sensitivity | -44dB ±3dB @ 94dB SPL |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 58dB |
| Termination | Pressure Contact |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.094" (2.40mm) |
| Voltage - Rated | 2 V |
| Impedance | 2.2 kOhms |
| Current - Supply | 500 µA |
| Voltage Range | 2 V ~ 10 V |
| Frequency Range | 20 Hz ~ 16 kHz |
|
