| Part number: | GM5WA06250A |

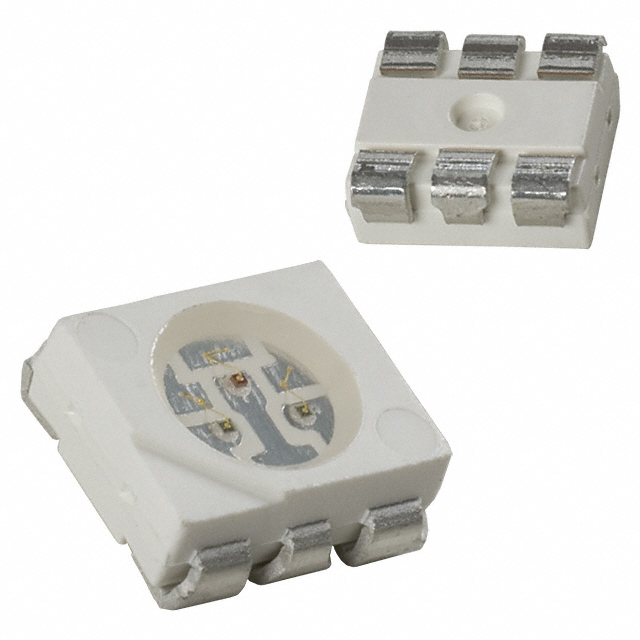

| Description: | LED RGB CLEAR CHIP SMD |
| Manufacturer | Sharp Microelectronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 800 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sharp Microelectronics" |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 6.00mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1450mcd Red, 1450mcd Green, 1450mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.3V Red, 4.2V Green, 4.2V Blue |
| Lens Color | Colorless |
| Current - Test | 40mA Red, 40mA Green, 40mA Blue |
| Height (Max) | 2.40mm |
| Wavelength - Dominant | 628nm Red, 520nm Green, 469nm Blue |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
|
