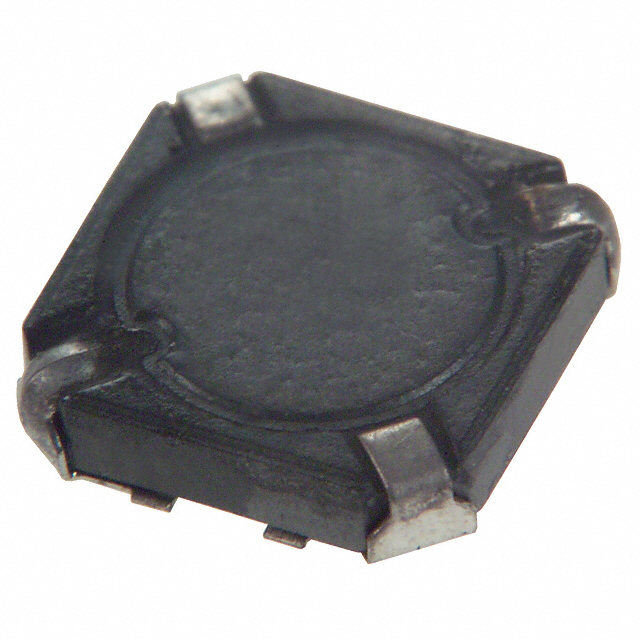

| Part number: | ELL-6GM7R5N |
| Description: | FIXED IND 7.5UH 1.05A 110MOHM SM |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| DC Resistance (DCR) | 110mOhm |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.063" (1.60mm) |
| Inductance | 7.5 µH |
| Current Rating (Amps) | 1.05 A |
|
