| Part number: | 2474-13L |

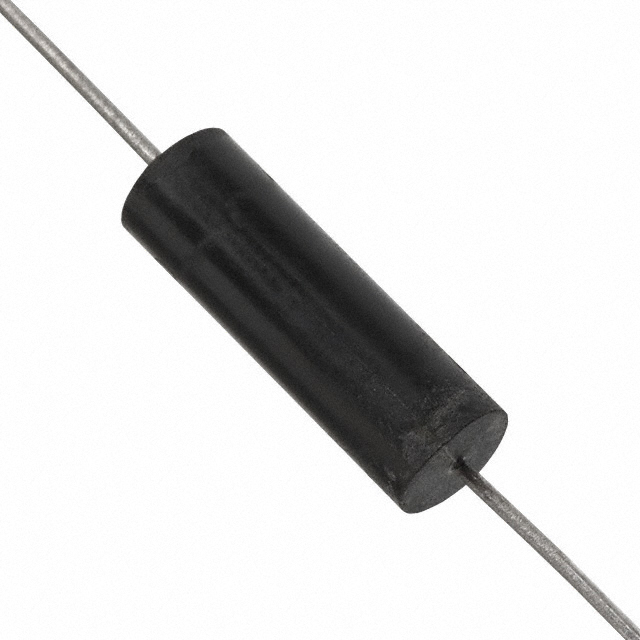

| Description: | FIXED IND 10UH 3.27A 33 MOHM TH |
| Manufacturer | API Delevan |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "API Delevan" |
| Tolerance | ±15% |
| Package / Case | Axial |
| Size / Dimension | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 33mOhm Max |
| Current - Saturation (Isat) | 2A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 kHz |
| Inductance | 10 µH |
| Current Rating (Amps) | 3.27 A |
|
