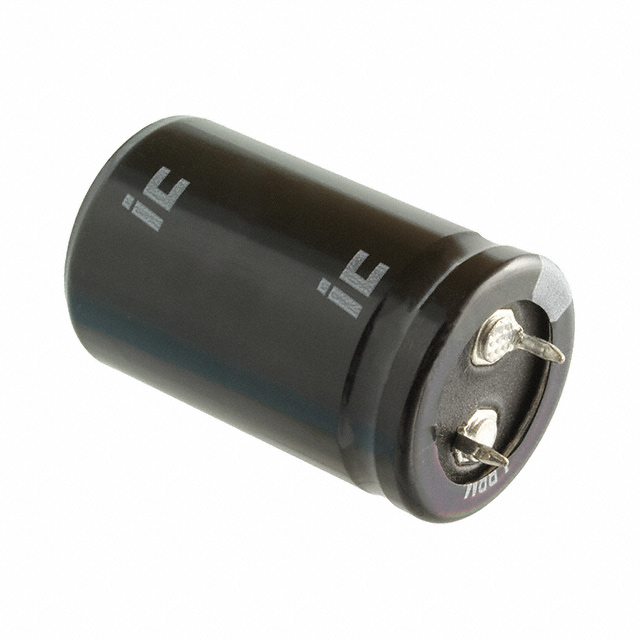

| Part number: | 227LBB400M2CF |
| Description: | CAP ALUM 220UF 20% 400V SNAP |
| Manufacturer | Cornell Dubilier / Illinois Capacitor |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Cornell Dubilier / Illinois Capacitor" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 1.13036Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Capacitance | 220 µF |
| Voltage - Rated | 400 V |
| Ripple Current @ Low Frequency | 1.64 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4108 A @ 10 kHz |
|
