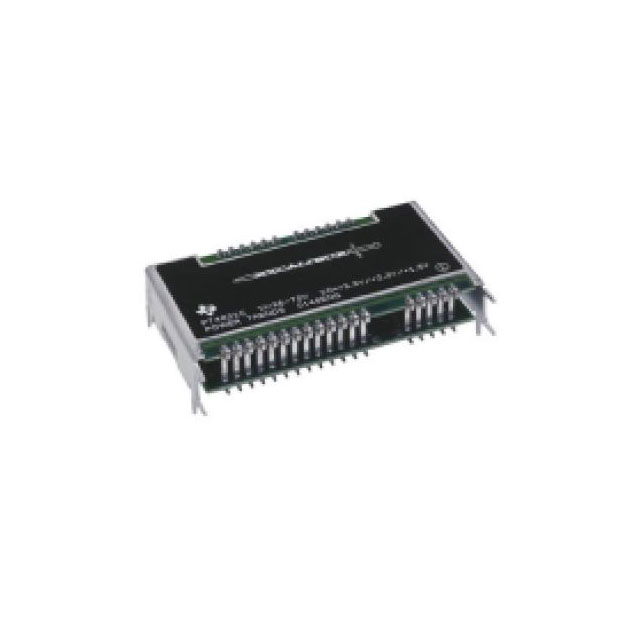

| Part number: | PT4823C |
| Description: | DC DC CNVRTR 3.3V 2.5V 1.2V 35W |
| Manufacturer | Texas Instruments |
| Encapsulation | Tray |
| Quantity | 8 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Features | Remote On/Off, OTP, SCP, UVLO |
| Package / Case | 21-SMD Module |
| Size / Dimension | 2.58" L x 1.62" W x 0.47" H (65.5mm x 41.1mm x 12.0mm) |
| Mounting Type | Surface Mount |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 75V |
| Efficiency | 85.6% |
| Current - Output (Max) | 8A, 6A, 6A |
| Voltage - Input (Min) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 2.5V |
| Voltage - Output 3 | 1.2V |
| Power (Watts) | 35 W |
| Number of Outputs | 3 |
| Voltage - Isolation | 1.5 kV |
|
