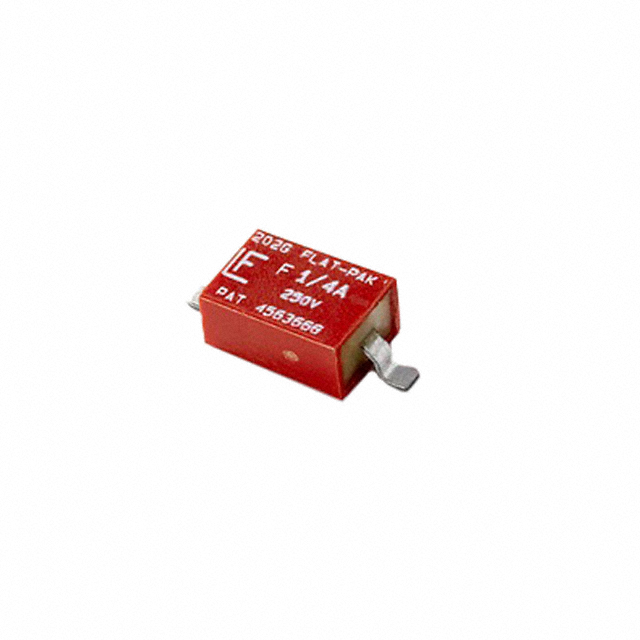

| Part number: | 0202.125URG |
| Description: | FUSE BOARD MNT 125MA 250VAC 2SMD |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | CSA, UL |
| DC Cold Resistance | 2.45 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 125 mA |
| Voltage Rating - AC | 250 V |
| Melting I²t | 0.0018 |
|
