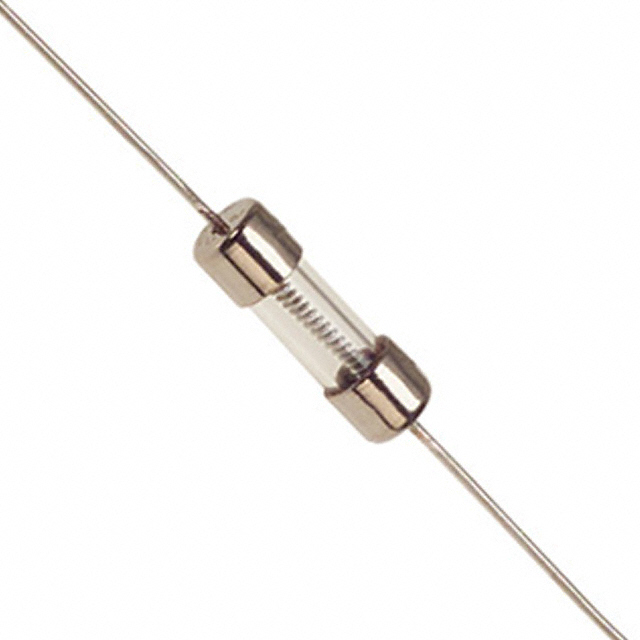

| Part number: | 0230.800DRT1W |
| Description: | FUSE GLASS 800MA 250VAC AXIAL |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Size / Dimension | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | CSA, UL |
| DC Cold Resistance | 0.304 Ohms |
| Breaking Capacity @ Rated Voltage | 35A |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | 250 V |
| Melting I²t | 3.45 |
|
