| Part number: | 0315.150H |

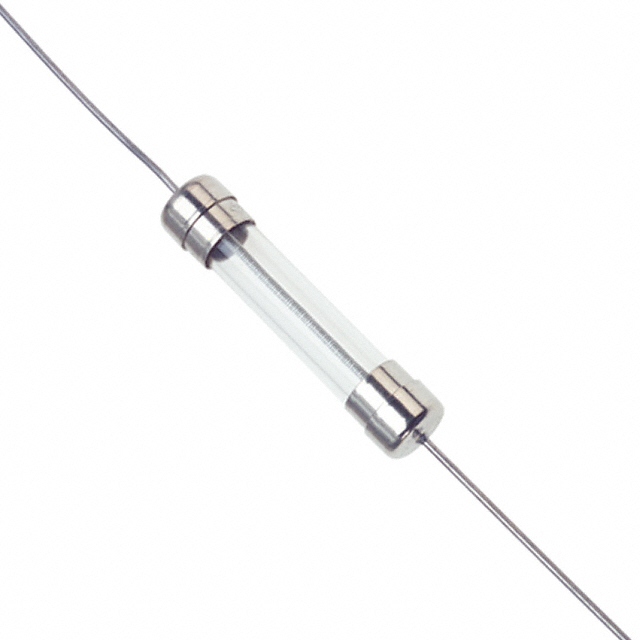

| Description: | FUSE GLASS 150MA 250VAC 3AB 3AG |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" (Axial) |
| Size / Dimension | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | CSA, UL |
| DC Cold Resistance | 15.3 Ohms |
| Breaking Capacity @ Rated Voltage | 35A |
| Current Rating (Amps) | 150 mA |
| Voltage Rating - AC | 250 V |
| Melting I²t | 0.27 |
|
