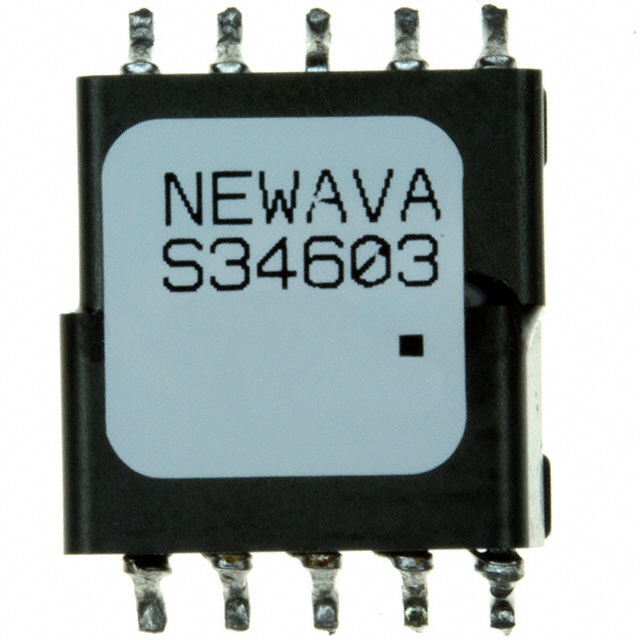

| Part number: | S34603 |
| Description: | FIXED IND 47UH 2.25A 35 MOHM SMD |
| Manufacturer | Newava Technology |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Newava Technology" |
| Package / Case | Nonstandard |
| Size / Dimension | 0.560" L x 0.560" W (14.22mm x 14.22mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -45°C ~ 250°C |
| DC Resistance (DCR) | 35mOhm Max |
| Frequency - Self Resonant | 2MHz |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Inductance | 47 µH |
| Current Rating (Amps) | 2.25 A |
|
