| Part number: | RZB85DHAS |

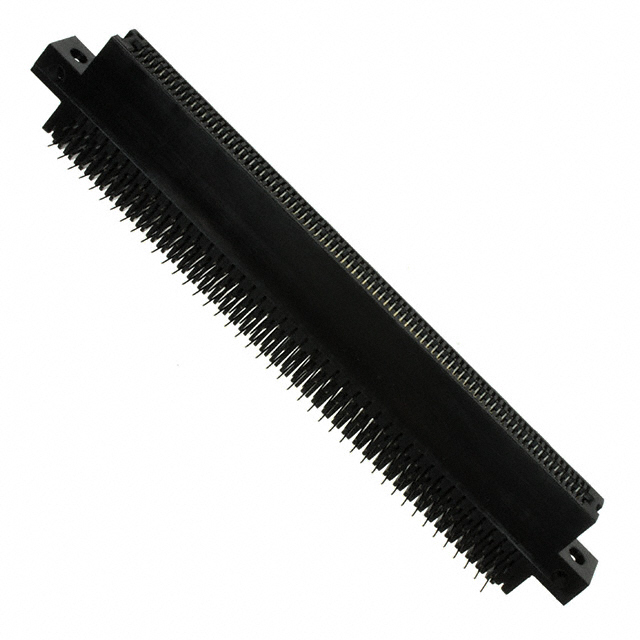

| Description: | CONN EDGE DUAL FML 170POS 0.050 |
| Manufacturer | Sullins Connector Solutions |
| Encapsulation | Tray |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sullins Connector Solutions" |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 170 |
| Pitch | 0.050" (1.27mm) |
| Operating Temperature | -65°C ~ 125°C |
| Read Out | Dual |
| Contact Type | Hairpin Bellows |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
| Flange Feature | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Termination | Solder, Staggered |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | 85 |
| Number of Rows | 2 |
|
