| Part number: | 1.14.100.501/0000 |

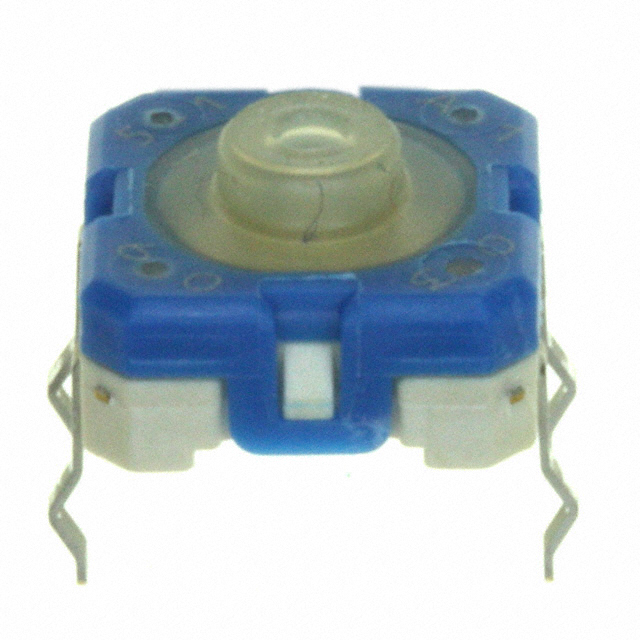

| Description: | SWITCH TACTILE SPST-NO 0.1A 42V |
| Manufacturer | RAFI |
| Encapsulation | Tube |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RAFI" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 80°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.1A @ 42VAC/DC |
| Actuator Type | Standard |
| Operating Force | 330gf |
| Outline | 8.40mm x 8.40mm |
| Actuator Height off PCB, Vertical | 4.90mm |
| Actuator Orientation | Top Actuated |
|
