| Part number: | 300-30-40-GR-0250F |

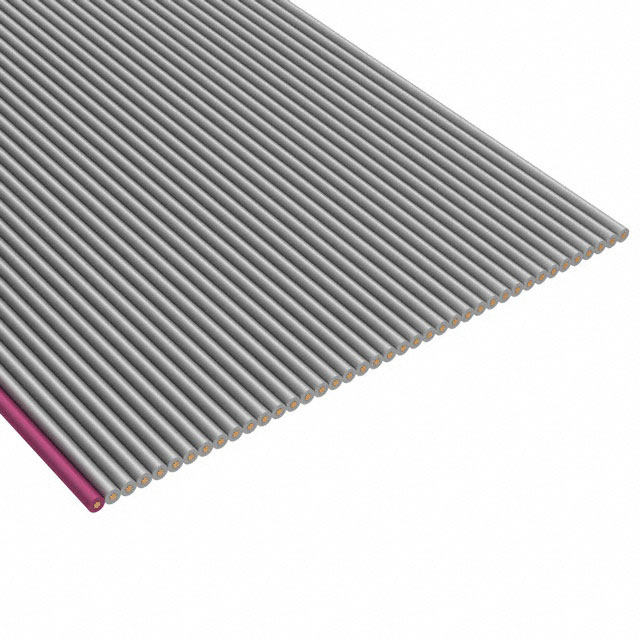

| Description: | CBL RIBN 40COND 0.025 GRAY 50' |
| Manufacturer | CnC Tech |
| Encapsulation | Spool |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CnC Tech" |
| Length | 50.0' (15.24m) |
| Wire Gauge | 30 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Strand | 7 Strands / 38 AWG |
| Pitch | 0.025" (0.64mm) |
| Operating Temperature | 105°C |
| Number of Conductors | 40 |
| Cable Type | Flat Cable |
| Ratings | UL Style 2678 |
| Conductor Material | Copper, Bare |
| Jacket Color | Gray |
| Insulation Resistance | 100MOhms |
| Ribbon Thickness | 0.026" (0.66mm) |
| Ribbon Width | 1.000" (25.40mm) |
| First Conductor Mark | Red |
| Voltage | 150 V |
|
