| Part number: | 302-28-14-GR-0100F |

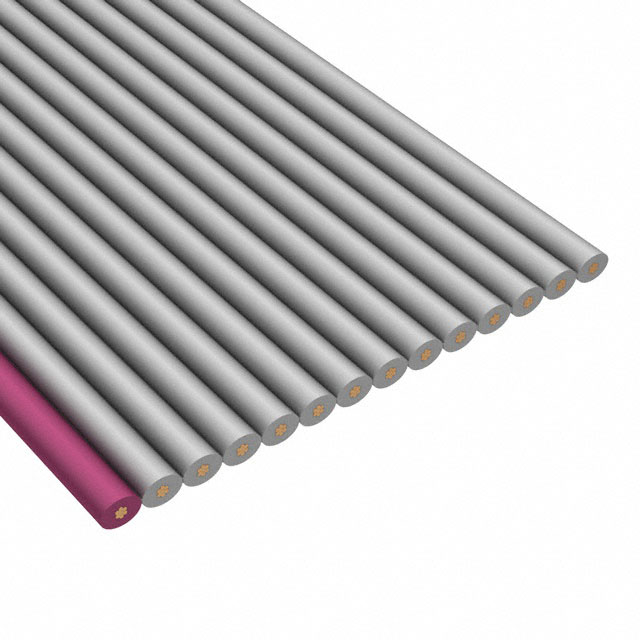

| Description: | CABLE RIBBON 14COND 0.05" GRAY |
| Manufacturer | CnC Tech |
| Encapsulation | Spool |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CnC Tech" |
| Length | 100.0' (30.48m) |
| Wire Gauge | 28 AWG |
| Shielding | Unshielded |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Strand | 7 Strands / 36 AWG |
| Pitch | 0.050" (1.27mm) |
| Operating Temperature | 105°C |
| Number of Conductors | 14 |
| Cable Type | Flat Cable |
| Ratings | UL Style 2651 |
| Conductor Material | Copper, Tinned |
| Jacket Color | Gray |
| Insulation Resistance | 100MOhms |
| Ribbon Thickness | 0.035" (0.89mm) |
| Ribbon Width | 0.700" (17.78mm) |
| First Conductor Mark | Red |
| Voltage | 300 V |
|
