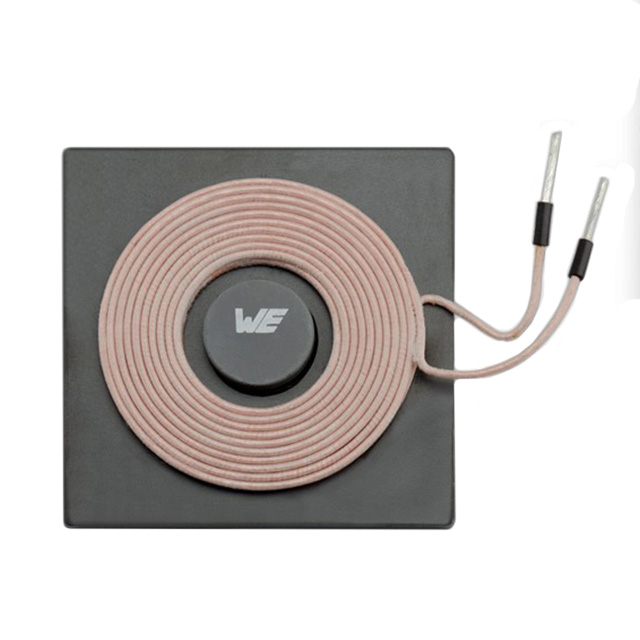

| Part number: | 760308102142 |
| Description: | TX 1 COIL 1 LYR BIFIL 5.8UH 18A |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Box |
| Quantity | 14 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±10% |
| Inductance | 5.8µH |
| Size / Dimension | 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm) |
| Current Rating (Amps) | 18A |
| Function | Transmitter |
| Type | 1 Coil, 2 Layer, Bifilar |
| Operating Temperature | -20°C ~ 105°C |
| DC Resistance (DCR) | 12mOhm Max |
| Q @ Freq | 100 @ 125kHz |
| Frequency - Self Resonant | 12MHz |
| Current - Saturation (Isat) | 30A |
|
