| Part number: | 760308101217 |

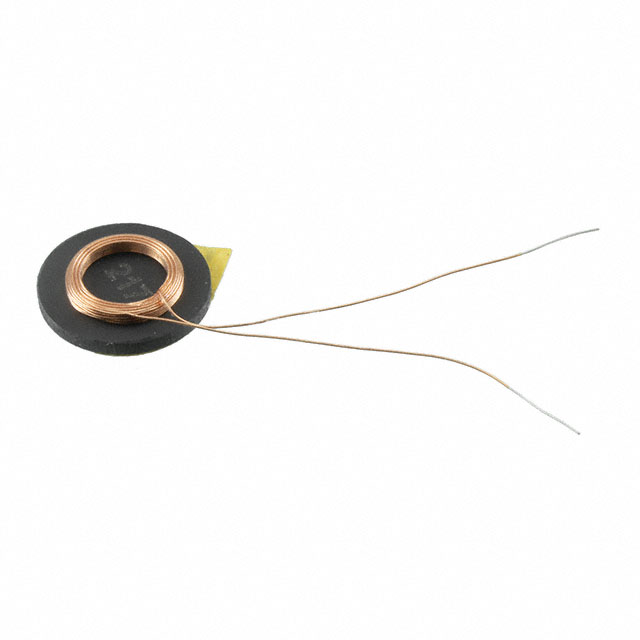

| Description: | RX 1 COIL 6 LAYER 24.2UH 400MA |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Box |
| Quantity | 360 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±10% |
| Inductance | 24.2µH |
| Size / Dimension | 0.41" Dia x 0.07" H (10.3mm x 1.9mm) |
| Current Rating (Amps) | 400mA |
| Function | Receiver |
| Type | 1 Coil, 6 Layer |
| Operating Temperature | -20°C ~ 105°C |
| DC Resistance (DCR) | 1.4Ohm Max |
| Q @ Freq | 13 @ 125kHz |
| Frequency - Self Resonant | 14.5MHz |
| Current - Saturation (Isat) | 1A |
|
