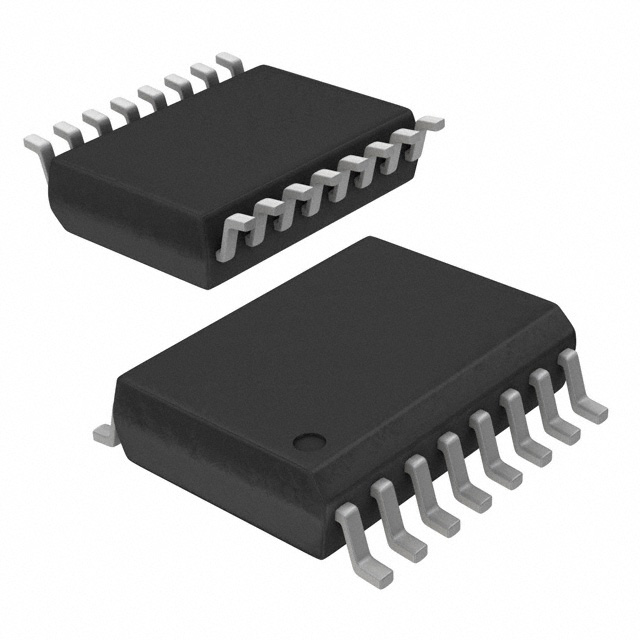

| Part number: | MAX14941GWE+ |
| Description: | DGTL ISO 5000VRMS RS485 16SOIC |
| Manufacturer | Maxim Integrated / Analog Devices |
| Encapsulation | Tube |
| Quantity | 46 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Maxim Integrated / Analog Devices" |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | RS485 |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.71V ~ 5.5V, 4.5V ~ 5.5V |
| Data Rate | 20Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 2/1 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 15ns, 15ns (Max) |
| Common Mode Transient Immunity (Min) | 35kV/µs (Typ) |
| Propagation Delay tpLH / tpHL (Max) | 68ns, 68ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Number of Channels | 3 |
|
