| Part number: | M74HCT14B1R |
| Description: | IC INVERT SCHMITT 6CH 1INP 14DIP |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Features | Schmitt Trigger |

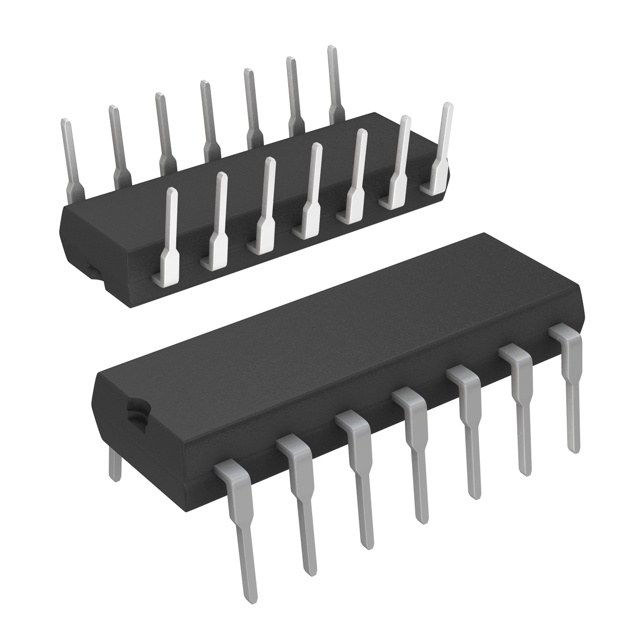

| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | Inverter |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 4mA, 4mA |
| Number of Inputs | 1 |
| Supplier Device Package | 14-DIP |
| Input Logic Level - High | 1.9V ~ 2.1V |
| Input Logic Level - Low | 0.5V ~ 0.6V |
| Max Propagation Delay @ V, Max CL | 30ns @ 4.5V, 50pF |
| Number of Circuits | 6 |
| Current - Quiescent (Max) | 1 µA |
|
