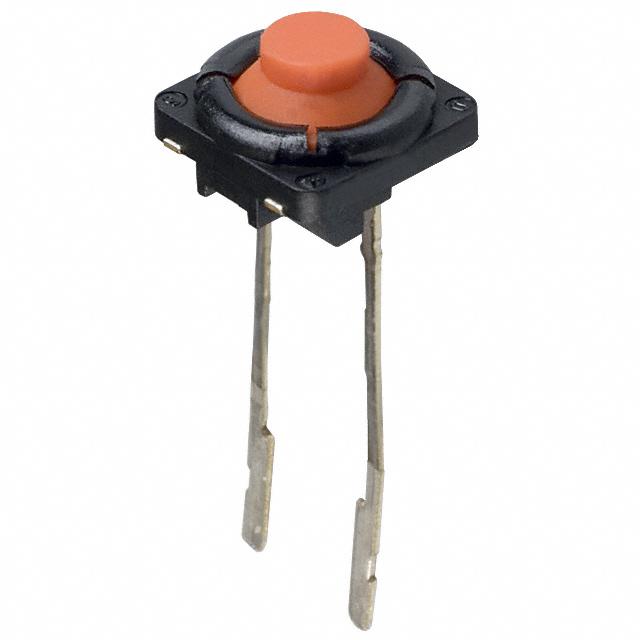

| Part number: | EVQ-QJE05D |
| Description: | SWITCH TACT SPST-NO 0.005A 12V |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Box (TB) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.005A @ 12VDC |
| Actuator Type | Standard |
| Operating Force | 130gf |
| Outline | 8.00mm x 8.00mm |
| Actuator Height off PCB, Vertical | 5.00mm |
| Actuator Orientation | Top Actuated |
|
