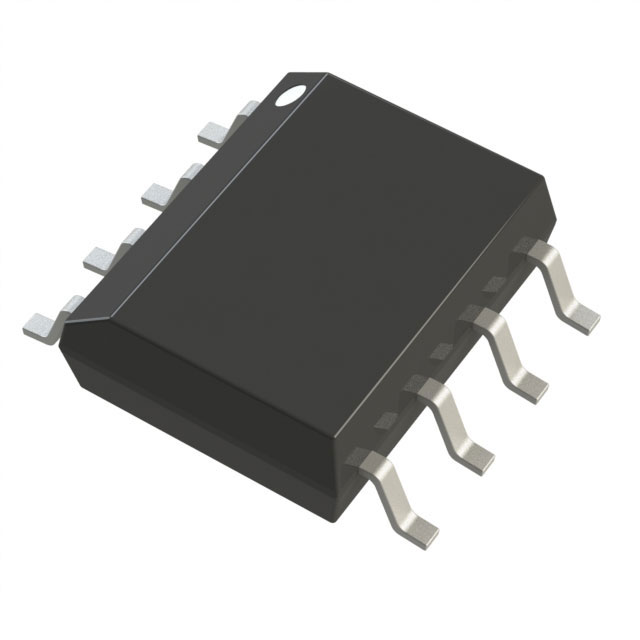

| Part number: | ADUM1286WBRZ |
| Description: | DGTL ISO 3000VRMS 2CH GP 8SOIC |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 98 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 25Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 3000Vrms |
| Inputs - Side 1/Side 2 | 1/1 |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 35ns, 35ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 3ns |
| Grade | Automotive |
| Number of Channels | 2 |
|
