| Part number: | STGF3NB60FD |
| Description: | IGBT 600V 6A 25W TO220FP |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

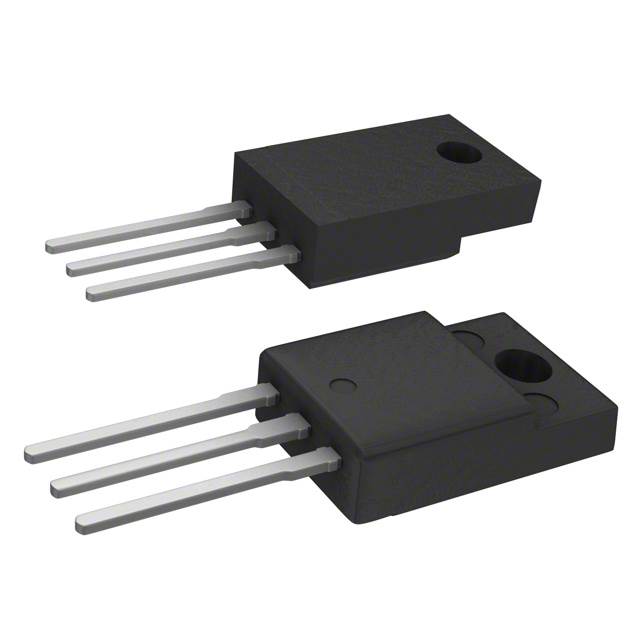

| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 45 ns |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 3A |
| Supplier Device Package | TO-220FP |
| Td (on/off) @ 25°C | 12.5ns/105ns |
| Switching Energy | 125µJ (off) |
| Test Condition | 480V, 3A, 10Ohm, 15V |
| Gate Charge | 16 nC |
| Current - Collector (Ic) (Max) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 24 A |
| Power - Max | 25 W |
|
