| Part number: | BAW56WT1 |
| Description: | DIODE ARRAY GP 70V 200MA SC70-3 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

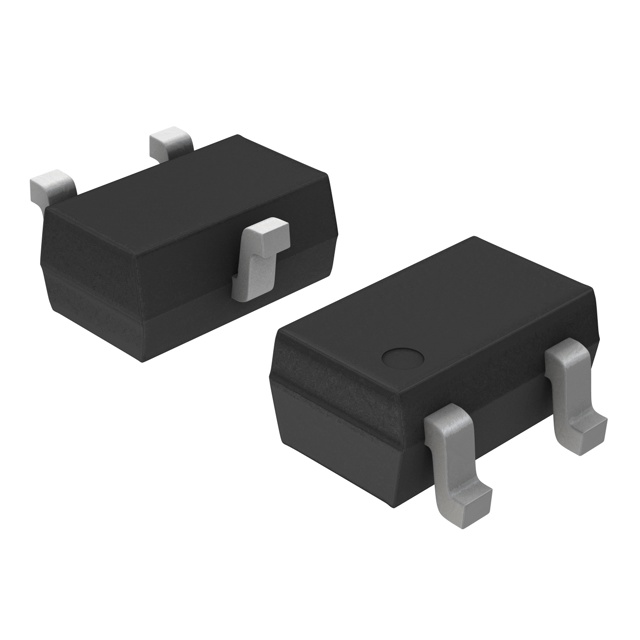

| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 6 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Supplier Device Package | SC-70-3 (SOT323) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 70 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 70 V |
|
