| Part number: | XXCBELNANF-12.000000 |

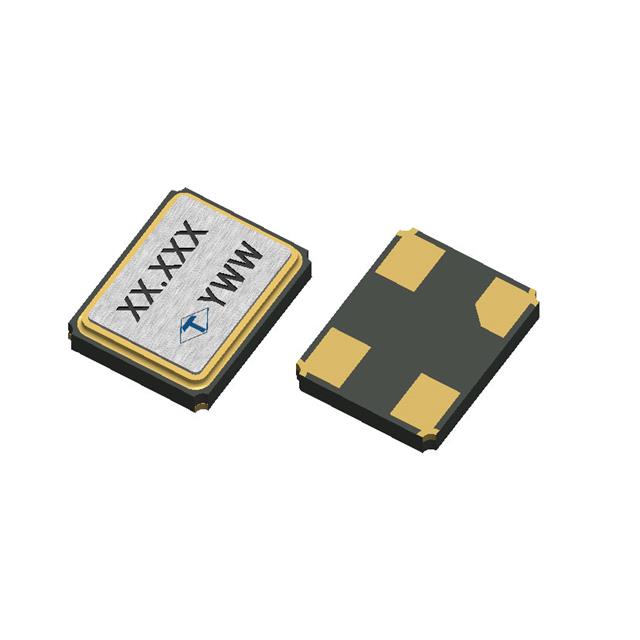

| Description: | CRYSTAL 12.0000MHZ 10PF SMD |
| Manufacturer | Taitien |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Taitien" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 10pF |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.035" (0.90mm) |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 12 MHz |
|
