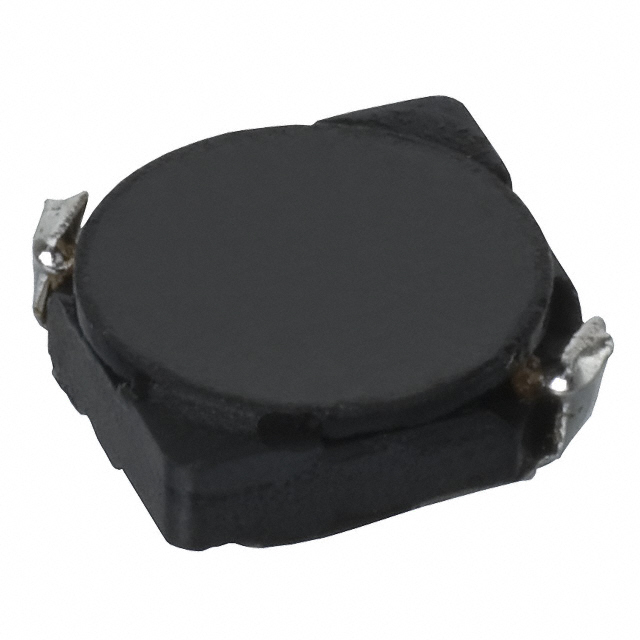

| Part number: | CDRH5D28-6R2NC |
| Description: | FIXED IND 6.2UH 1.8A 45 MOHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.224" L x 0.224" W (5.70mm x 5.70mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 100°C |
| DC Resistance (DCR) | 45mOhm Max |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Inductance | 6.2 µH |
| Current Rating (Amps) | 1.8 A |
|
