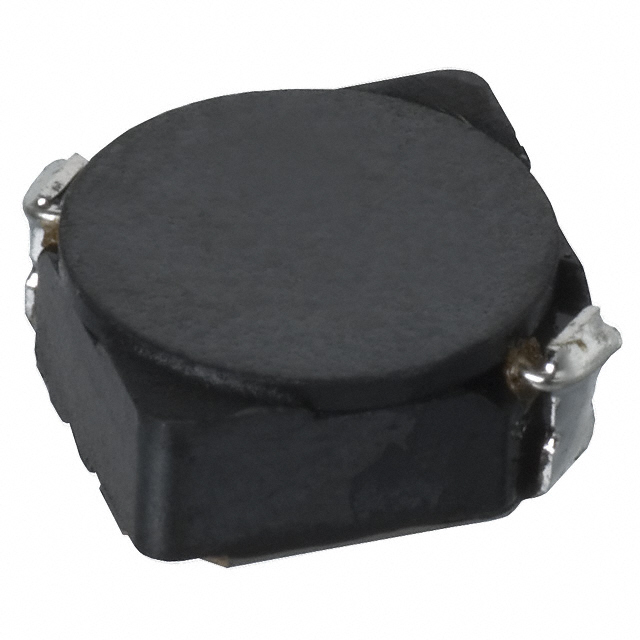

| Part number: | CDRH6D38-8R7NC |
| Description: | FIXED IND 8.7UH 2.2A 34 MOHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 100°C |
| DC Resistance (DCR) | 34mOhm Max |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Inductance | 8.7 µH |
| Current Rating (Amps) | 2.2 A |
|
